Motorised Wall Mount Swivel TV Lift
One television, every seat. Swings a 43″–100″ TV out from the wall and turns it up to 160° towards the sofa, the swing or the dining table — by remote, Alexa or Google — then parks it back near-flush against the wall.
Model AXWM03 · By AxisY Compact Lifting Solutions
Alexa · Google
One screen, every seat
The AxisY Motorised Wall Mount Swivel TV Lift is a full-motion bracket for large flat-panel and curved televisions from 43″ to 100″. A press on the remote — or a voice command through Alexa or Google — and a concealed actuator drives the dual-arm linkage, gliding the screen out and turning it through 0°–160°.

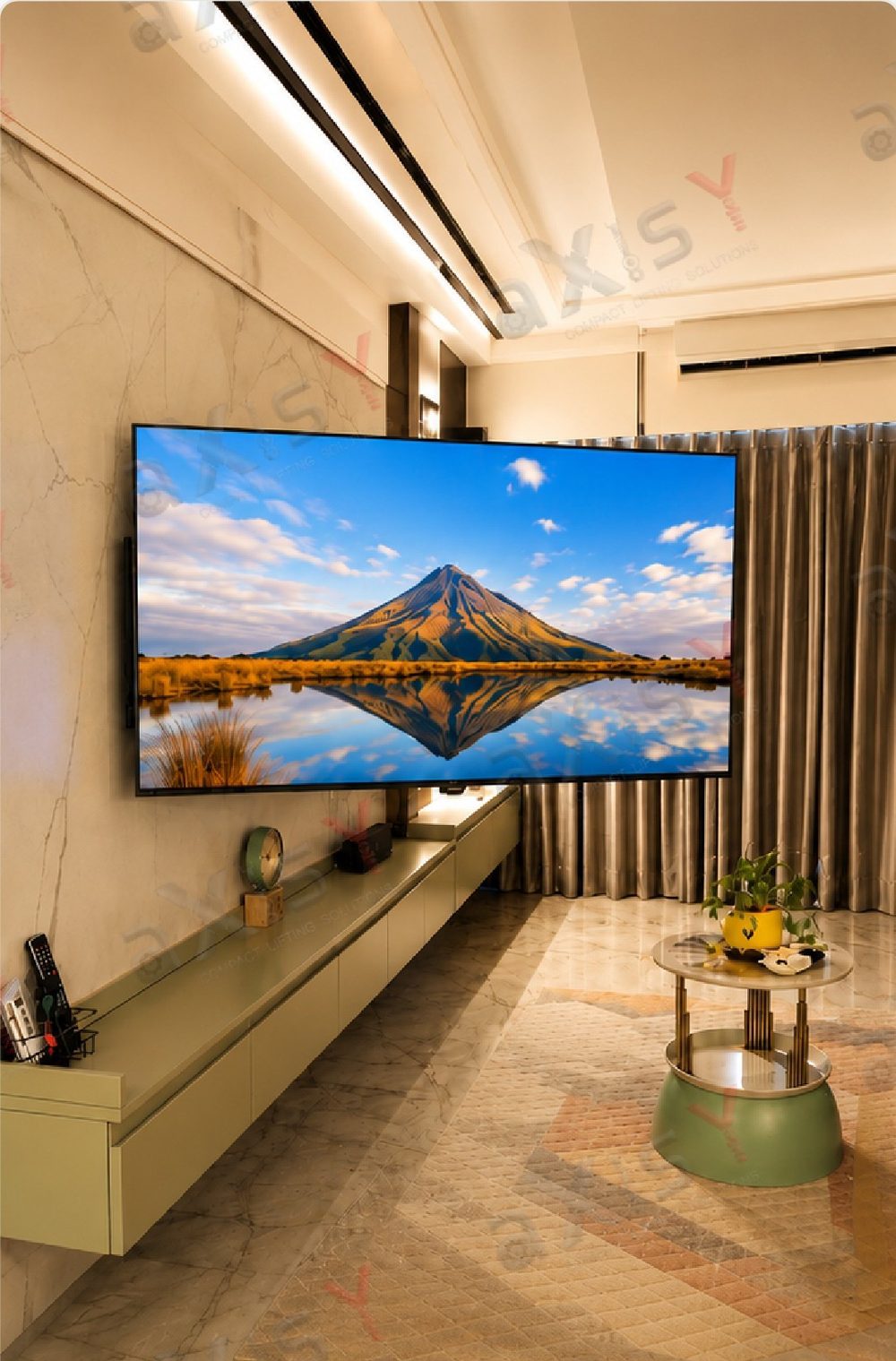

The same television now serves a sofa, a swing, a dining table or an adjoining space, without anyone touching the panel. Parked, it sits close to the wall in a near-flush profile; extended, it reaches 940 mm. A reinforced steel chassis in premium black powder coat carries up to 45 kg.
Best suited for
Open-plan living and dining rooms, sofa-and-swing layouts, premium apartments, hospitality suites, boardrooms, showrooms and reception areas — anywhere one screen must face several seating zones. Powered movement is smooth, repeatable and removes the strain of swinging a heavy panel by hand.
See it move
Our ad, and two short videos that explain how the mechanism works.
Built for big screens and busy rooms
Alexa & Google voice control
Operate it hands-free with Amazon Alexa or Google Assistant through IR control — no remote needed.
Remote-controlled movement
A handheld IR remote extends, retracts and swivels the TV on demand — no reaching, pushing or pulling.
Wide 0°–160° swivel
A broad rotation range lets a single screen serve multiple seating positions across an open layout.
Heavy-duty 45 kg capacity

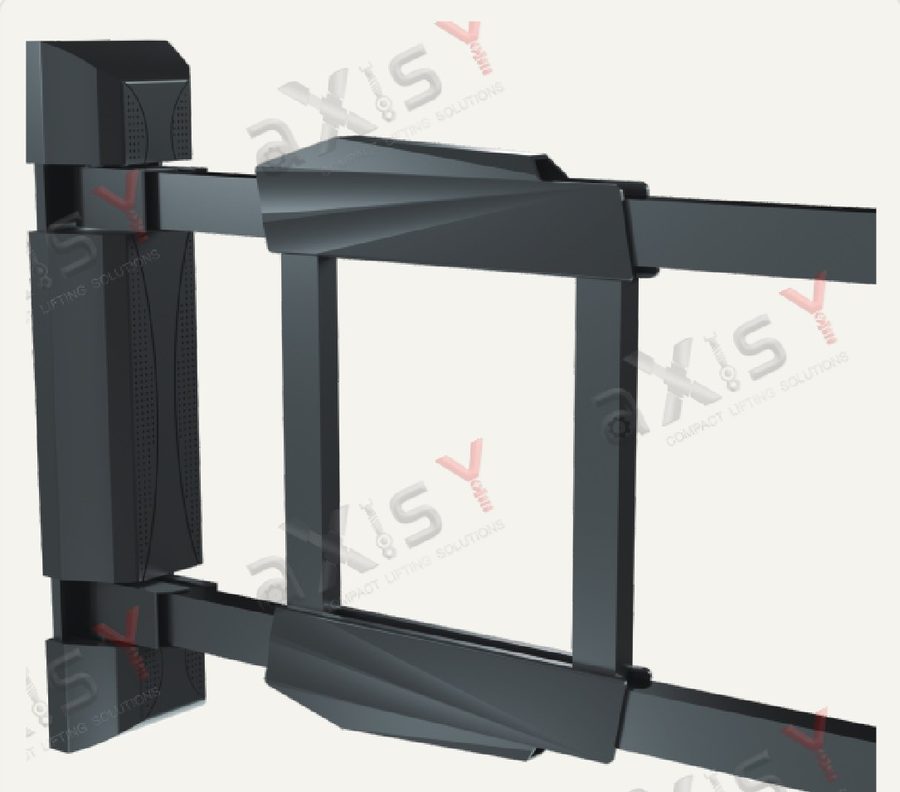

Reinforced steel arms safely carry big-screen panels up to 45 kg (99 lbs) with minimal flex.
Near-flush parking
Folds back to a tidy near-flush profile and returns to the same rest position every time.
Integrated cable management
Routing channels guide power and AV leads along the arms so cables track the motion cleanly and stay out of sight.
Easy-to-install split panel

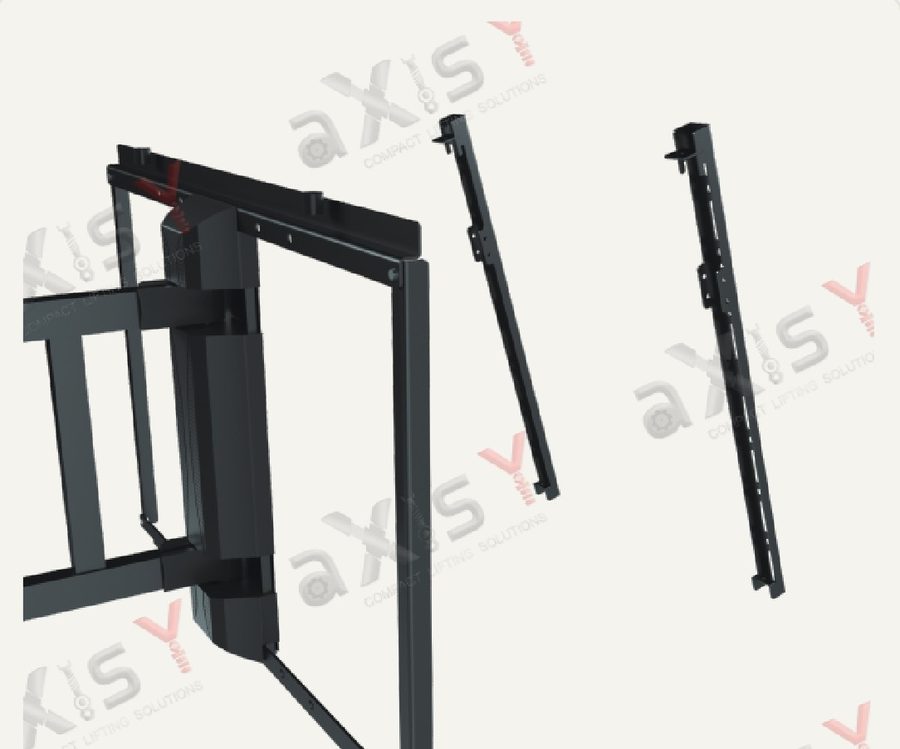

Detachable TV rails hook onto the wall plate, so the screen can be offered up and locked in place with ease.
Premium black powder coat
A durable matte finish resists scratches and corrosion and recedes discreetly against any wall.
Press. Swivel. Park.
- 1
Press to extend

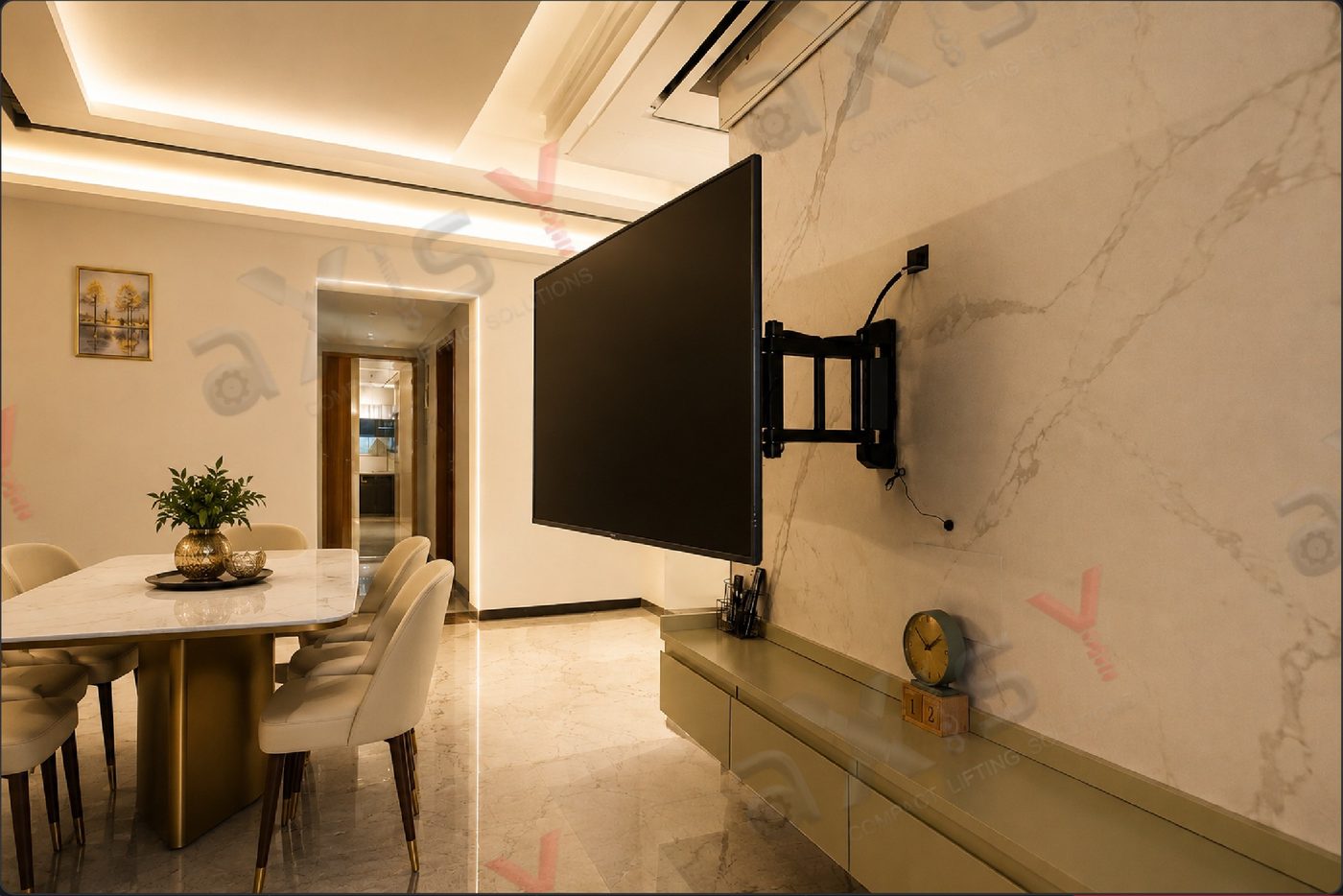

The remote (or your voice assistant, via IR) signals the actuator, which drives the linkage and glides the screen out from the wall.
- 2
Swivel to the view
Rotate the panel anywhere across the 0°–160° arc to face the chosen seating zone or room.
- 3
Park near-flush
One press returns the arms to the wall, parking the TV in its tidy near-flush resting position.
Model AXWM03 at a glance
| Product type | Motorised wall mount swivel TV lift (full-motion) |
|---|---|
| Compatible TV size | 43″ – 100″ (55″ – 100″ recommended for best balance) |
| Maximum load capacity | 45 kg / 99 lbs |
| VESA mounting pattern | Up to 600 × 400 mm |

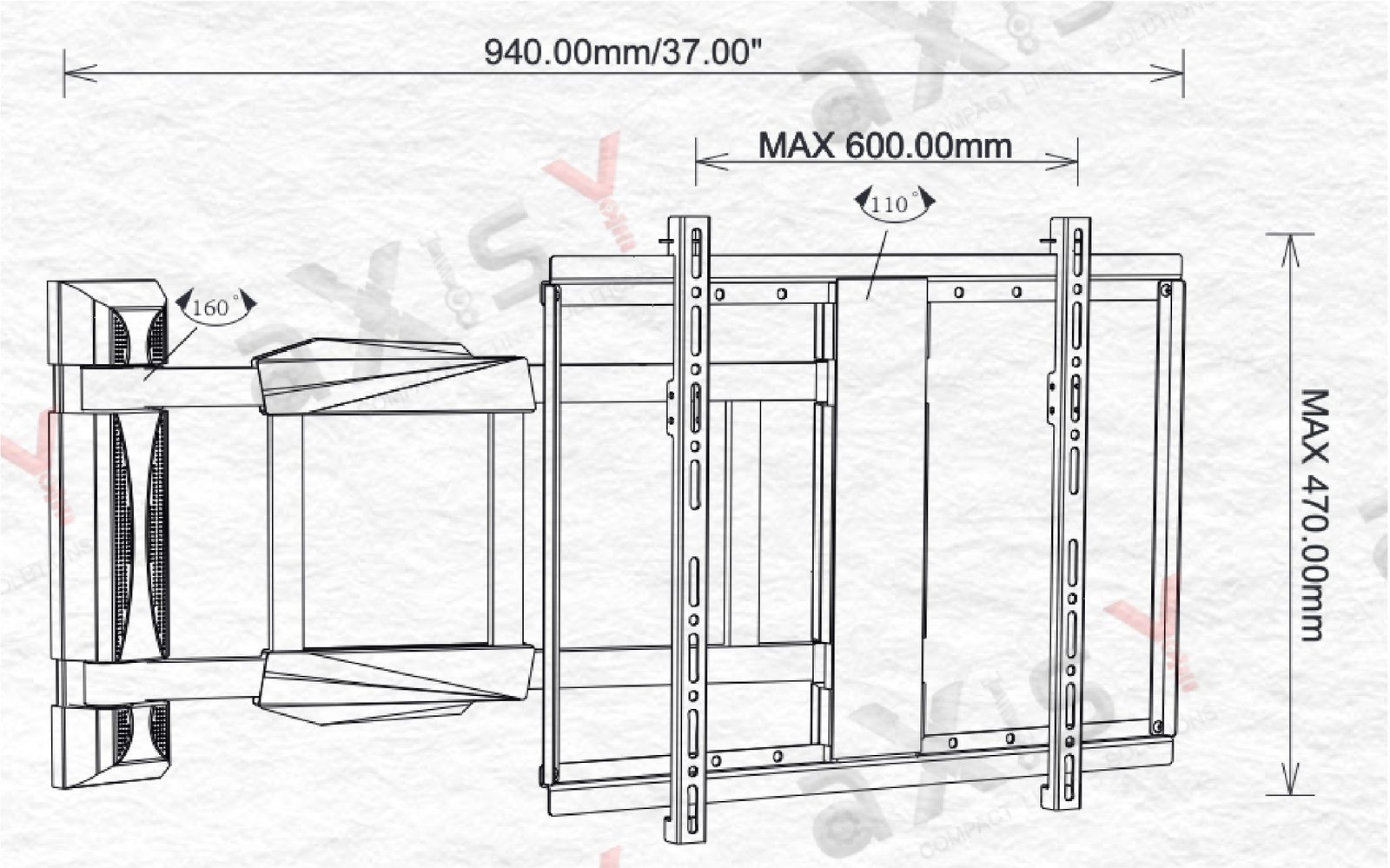

| Max extension (TV to wall) | 940 mm / 37.0″ |
| Swivel range | 0° – 160° |
| Mounting-rail width / height | Up to 600 mm wide × 470 mm tall |
| Operation | Electric motorised actuator; IR remote handset |
| Voice control | Alexa & Google Assistant, through IR control |
| Material | Heavy-gauge steel chassis and arms |
| Finish | Premium black powder coat |
| Cable management | Integrated routing along both arms |
| Warranty | Limited 1-year warranty |
All figures are nominal maximums. Always confirm your television’s actual weight and VESA spacing fall within these limits before installation. Voice control requires a compatible IR smart controller.
See the details
What’s in the box & how it goes up
What’s in the box
- 01Pre-assembled motorised arm unit
- 02Wall mounting plate
- 03Pair of adjustable TV mounting rails
- 04IR remote handset
- 05Power lead / adapter
- 06Fixings & hardware pack (anchors, bolts, VESA screws, spacers)
- 07Installation manual
Typical pack contents — please check against the carton checklist on receipt.
Installation overview
- 1Confirm a solid wall (masonry / concrete) and fixings suited to the substrate.
- 2Mark and bolt the wall plate level using the supplied hardware.
- 3Fix the split rails to the TV’s VESA points.
- 4Hook on the TV, lock it, then route power & AV through the channels.
- 5Pair the remote, set open/close limits and test the full travel.
Note: two-person installation is recommended. Professional fitting is advised for 75″+ panels and for plasterboard or hollow walls. Keep the swivel path clear and allow side clearance for the full 160° rotation.
One TV for every space
Luxury homes & apartments
Turn the TV from the sofa to the swing or dining table without moving furniture.
Boardrooms & offices
Point one display at either end of the room with a single press.
Hotels & hospitality
Suites where guests watch from the bed, the lounge or the work desk.
Showrooms & reception
Clean, near-flush wall when idle and a large screen on demand.
Frequently asked questions
Which TVs does the motorised swivel mount support?
TVs from 43" to 100" (55"-100" gives the best balance), up to 45 kg (99 lbs), with a VESA pattern up to 600 x 400 mm. Always confirm your TV's actual weight and VESA spacing before ordering.
How far does it extend and how much does it turn?
The arms reach 940 mm (37 inches) from the wall and the TV swivels through 0 to 160 degrees, so one screen can face a sofa, a swing, a dining table or an adjoining room.
Can I control it with Alexa or Google Assistant?
Yes. The mount is operated by an IR remote, and Alexa and Google Assistant work through IR control. You will need a compatible IR smart controller linked to your voice assistant.
Where can it be installed?
On a solid wall such as masonry or concrete, using the supplied fixings. Two-person installation is recommended, and professional fitting is advised for 75" and larger panels and for plasterboard or hollow walls. Keep the swivel path clear and allow side clearance for the full 160 degree rotation.
What happens to the cables when the TV moves?
Integrated routing channels guide power and AV leads along both arms, so cables follow the motion cleanly and stay out of sight.
Ready to turn your TV towards the view?
Tell us your TV size and wall type and our team will guide you on the right setup — with AxisY installations across 15+ Indian cities.
